| 4 Pass Thermic Fluid Heater |
|
 |
|
6 LACS – Kcal/ Hours to 90 lacs – kcal/ Hour With Solid Fuel Firing |

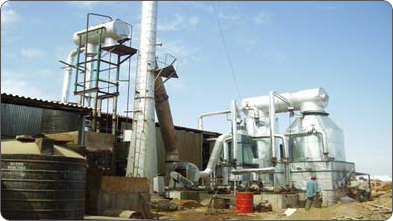

We are engaged in offering 4 Pass Thermic Fluid Heaters to our clients all over the world. These are available in different capacities as well as various specifications to suit the exact requirements of the clients. Equipped with fluid pipelines, storage tanks etc. these can be easily installed. We provide these at the most competitive prices.
|
We are one of the preeminent manufacturers and exporters of Thermic Fluid Heaters in the market. We are able to offer Thermic Fluid Heaters, which are energy efficient and work on liquid & vapor phase. Known for longer working life, these can be used with gas, oil, coal and agro-waste fuels. Our precision engineered Thermic Fluid heaters are robust in construction and require less maintenance costs as compared to conventional heaters. We offer Thermic Fluid Heaters in a variety of sizes and can also customize them according to the client.
|
Characteristics
|
- 4 Pass Design Multi Start Coil
- Split Design/Parallel Design
- Higher Heat transfer Area Of 9 to 10 Square Meter Per 1 lac Kcal/hour his Provided
- Multi fuel Option
- FBC Automatic Fuel feeding System
- Long thermic fluid life
- Corrosion free
- No scale problems
- No boiler regulation
- High temperature
- Abrasion resistant
- Easy to use
|
|
Consists of
|
- Radiant & Convective Coil Heat Exchanger.
- Shell for Enclosing Coil Assembly.
- Air Preheater
- Multi Cyclone Dust Collector or
- Treema Cyclone-Cyclomax. or
- Wet Scrubber.
- Furnace with Fire Doors & Ash Doors.
- Fire Bars or Air Nozzel Box.
- Screw Feeder. Expansion Cum Deaerator Tank
- High temperature re-circulating pumps
- Advanced safety features
- Complete control panel
|
Specifications
|
| Abnormal Condition |
Safety Action |
Low Thermic Fluid Level in Expansion Tank |
Level Switch actuated at expansion tank cuts of the ID Fan / FD Fan. |
|
|
Low Thermic Fluid Flow |
Differential pressure switch (DPS) across inlet and outlet headers cuts of the ID Fan slowing down combustion |
|
|
Thermic Fluid system pressure high due to system valves closure etc. |
Pressure switch cuts of ID Fan and alarm. Safety relief valve (Optional) to be provided in the system piping so as to by pass the oil. |
|
|
Thermic Fluid Temperature High |
Digital Temperature cuts of ID fan at set point |
| |
|
Coil Chocking |
Differential pressure Switch (DPS) across system cuts of the ID Fan Slowing down combustion |
| |
|
Thermic Fluid Motor Trip |
Electrical Interlock cuts of fans |
| |
|
Power Failure |
Diesel Engine (Optional) keeps thermic fluid moving to avoid overheating and overflow of oil. Exhaust with Damper provided on furnace to drive away hot gases directly. |
|
