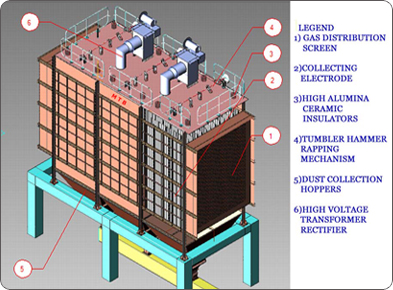

ELECTROSTATIC PRECIPITATOR is an aid in reducing atmospheric pollution by removing the fly ash before it goes out of the smoke stack. It is a commonly used method for removing fine particulates from airstreams. The air which enters ESP is almost up to 99.9% cleaner than when it is released.
What is so unique about our design?
Our design team after extensive research have developed a special design which is:
Cost effective
Appropriate for large and medium scale operation.
Compact
We have been successfully using it in our plant, and are proud to state that our company has met air pollution control norms with our in-house developed ESP. Thus we now would like to fill this gap of cost effective technology product by introducing it to the industry
Salient Features
Collection Electrodes
Manufactured with special profile to accommodate quiescent zone to prevent re-entrainment of dust in
to the air stream.
Made on accurate rolling machines so as to have perfect straightness from top to bottom.
Design to transmit rapping force uniformly across the entire plate with bottom welded anvil plates.
Discharge Electrode
Manufactured with tube and spike for excellent corona generation with optional SS discharge points for
long life.
The tube is square so as to have additional sharp edges for corona discharge.
Long lasting as compared to weighted wire electrodes.
Ceramic Insulators
High alumina content ceramic insulators for high compressive strength to take the load.
Special design to prevent direct contact with heat and therefore not prone to crack due to
condensation.
Rapping System
Motorized tumbler hammer rapping system to avoid complexities of magnetizing.
Very simple to maintain as compared to EMIGI system.
“Power off rapping” can be incorporated so that the dust cake collapses with least resistance.
TR Set And Controller
Has rapping control incorporated in same controller thus saving on addition al cost unlike EMIGI
system.
Pulse power system available which can be used for optimization.
It is incorporated with high impedance to give short circuit protection even in case of controller failure.
Spark sensitivity can be changed to optimize performance.
